Pipelines

Pipeline List View

Concepts

Crow uses a three-level hierarchy: pipeline > workflow > step.

• Pipeline — a single CI invocation. A pipeline is not defined in a file; it is created at runtime in response to one event (push, pull request, manual run, …) and bundles all workflows that match that event.
• Workflow — a YAML file in .crow/ (or Jsonnet .jsonnet) defining a collection of steps. This is what you author to describe what should run.
• Step — a single command sequence executed inside a container.

Caution

Pipeline > Workflow > Step

When an event reaches Crow, every workflow whose when block matches that event is collected into one pipeline and executed. A push that matches three workflow files results in one pipeline containing three workflows — not three pipelines. The pipeline is the run; the workflows are what runs inside it.

Each YAML file in .crow/ defines one workflow. A workflow that uses a matrix expands at runtime into one workflow instance per matrix combination, so a single matrix file can produce multiple workflows in the resulting pipeline.

The following file tree defines four workflows:

.crow/
├── build.yaml
├── deploy.yaml
├── lint.yaml
└── test.yaml

Each workflow can consist of an arbitrary number of steps. By default, workflows do not have a dependency to each other and are executed in parallel. Steps within a workflow are executed sequentially by their order of definition.

Both steps and workflows accept a depends_on: [] key which can be used to specify an explicit execution order.

Caution

Each workflow is isolated from other workflows with respect to its working directory and file access. Steps within a workflow have access to the same files as they share a common workflow-specific volume which is attached to all steps within the workflow.

Execution control

By default, all workflows start in parallel if they have matching event triggers. An execution order can be enforced by using depends_on:

steps:
  - name: deploy
    image: <image>:<tag>
    commands:
      - some command

# these are names of other workflows
depends_on:
  - lint
  - build
  - test

This keyword also works for dependency resolution with steps.

Note

Workflows which depend on others only start if the dependent ones finished successfully. A workflow can be forced to execute no matter the exit status of other workflows by setting

runs_on: [success, failure]

Event triggers

Event triggers are mandatory and define under which conditions a workflow is executed. At the very least one even trigger must be specified, for example to execute the pipeline on a push event:

when:
  event: push

Typically, you want to use a more fine-grained logic including more events, for example triggering a workflow for pull_request events and pushes to the default branch of the repository:

when:
  - event: pull_request
  - event: push
    branch: ${CI_REPO_DEFAULT_BRANCH}

There are more ways to define event triggers using both list and map notation. See the when filters reference for all available options and the full list of events.

Matrix workflows

Matrix workflows execute a separate workflow for each combination in the specified matrix. This simplifies testing and building against multiple configurations without copying the full pipeline definition but only declare the variable parts.

Example:

matrix:
  GO_VERSION:
    - 1.4
    - 1.3
  REDIS_VERSION:
    - 2.6
    - 2.8
    - 3.0

Each definition can also be a combination of variables. In this case, nest the definitions below the include keyword:

matrix:
  include:
    - GO_VERSION: 1.4
      REDIS_VERSION: 2.8
    - GO_VERSION: 1.5
      REDIS_VERSION: 2.8

Interpolation

Matrix variables are interpolated in the YAML using the ${VARIABLE} syntax, before the YAML is parsed. This is an example YAML file before interpolating matrix parameters:

matrix:
  GO_VERSION:
    - 1.4
    - 1.3
  DATABASE:
    - mysql:8
    - mysql:5
    - mariadb:10.1

steps:
  - name: build
    image: golang:${GO_VERSION}
    commands:
      - go get
      - go build
      - go test

services:
  - name: database
    image: ${DATABASE}

And after:

steps:
  - name: build
    image: golang:1.4
    commands:
      - go get
      - go build
      - go test
    environment:
      - GO_VERSION=1.4
      - DATABASE=mysql:8

services:
  - name: database
    image: mysql:8

Examples

Matrix pipeline with a variable image tag

matrix:
  IMAGE:
    - golang:1.7
    - golang:1.8
    - golang:latest

steps:
  - name: build
    image: ${IMAGE}
    commands:
      - go build
      - go test

Matrix pipeline using multiple platforms

matrix:
  platform:
    - linux/amd64
    - linux/arm64

steps:
  - name: test
    image: <image>
    commands:
      - echo "Running on ${platform}"

  - name: test-arm
    image: <image>
    commands:
      - echo "Running on ${platform}"
    when:
      platform: linux/arm*

Tip

For the kubernetes backend, architecture-specific pipelines should be controlled via the nodeSelector backend option.

Skipping commits

Commits can be prohibited from triggering a webhook by adding [SKIP CI] or [CI SKIP] (case-insensitive) to the commit message.

Container Naming Scheme

Crow supports configurable container naming schemes which determines the names of containers (and pods/services in Kubernetes) created during pipeline execution.

There are two supported schemes:

1. Descriptive (default)

   • Format: <owner>-<repo name>-<pipeline id>-<workflow id>-<step name>
   • Example: myowner-myrepo-42-3-build
   • Matrix workflows: Each workflow instance gets a unique workflow number for proper identification
   • Single workflows: Workflow number is still included for consistency

2. Hash-based (legacy)

   • Format: crow_<hash>
   • Example: crow_123e4567-e89b-12d3-a456-426614174000
   • This was previously the default (until 3.x) (as wp_<hash>), now updated to crow_ for clarity.

Note

Names are sanitized and truncated to 64 characters for Kubernetes compatibility.

The naming scheme can be set via the server environment variable CROW_CONTAINER_NAME_SCHEME.

Manual Pipeline Triggering

A pipeline can be triggered manually from the UI or CLI instead of by a forge event such as push or pull_request. Manual runs are the way to start deployments, releases, one-off maintenance jobs, or anything else you want to launch on demand, optionally parameterized with variables the user fills in first.

Enabling manual triggering

A workflow only appears in the manual trigger dialog when its when block contains the manual event. Add it on its own to make the workflow manual-only:

when:
  - event: manual

Or list it alongside other events so the same workflow still runs automatically:

when:
  - event: [push, manual]
    branch: main

Workflows without the manual event are never listed and cannot be started by hand.

Declaring variables

Manual runs can be parameterized with variables that the user sets before the pipeline starts. Declare them in the workflow’s top-level variables: block, keyed by variable name. Each entry accepts these fields:

Field	Type	Purpose
description	string	Helper text shown beneath the field in the UI.
options	list of strings	Restricts the value to a fixed set and renders it as a dropdown instead of a free-text input.
default	string	Pre-filled value; for options it selects the initially chosen entry.
required	boolean	When true, the field is marked with * and the pipeline cannot start until it has a value.

A worked example for a deploy workflow:

# .crow/deploy.yaml
variables:
  DEPLOY_ENV:
    description: Target deployment environment
    options: [staging, production]
    default: staging
    required: true
  VERSION:
    description: Release version tag (e.g. v1.4.2)
    default: ''
  RUN_MIGRATIONS:
    description: Apply database migrations before deploying
    options: ['true', 'false']
    default: 'false'
  # Shorthand: a bare scalar is a variable with only a default.
  LOG_LEVEL: info

when:
  - event: manual

The shorthand form NAME: value is equivalent to a declaration carrying only a default. Every value reaches the pipeline as a string, so quote booleans and numbers ('true', '3.12') to stop YAML from coercing them. Inside the workflow a variable is available for $VAR substitution in commands and for when.evaluate expressions. A variable used only via $VAR substitution, and never in evaluate, must be declared here to be settable.

Variables inferred from evaluate

Variables referenced in a when.evaluate expression are surfaced in the dialog automatically, even without a variables: declaration. Their names are extracted from the expression, and simple == or in comparisons against string literals become dropdown options:

when:
  - event: manual
    evaluate: 'DEPLOY_ENV in ["staging", "production"]'

The snippet above surfaces a DEPLOY_ENV dropdown offering staging and production with no variables: block at all. An explicit declaration always wins over what is inferred, so declare the variable when you also want a description, a default, or the required flag. Built-in CI_* variables and the deployment task selector are never offered as inputs.

Triggering from the UI

Open the manual trigger dialog from the repository’s pipeline list. It has two columns: the available workflows on the left and their variables on the right. Choose a branch at the top; the workflow list and variables reflect the configuration on that branch.

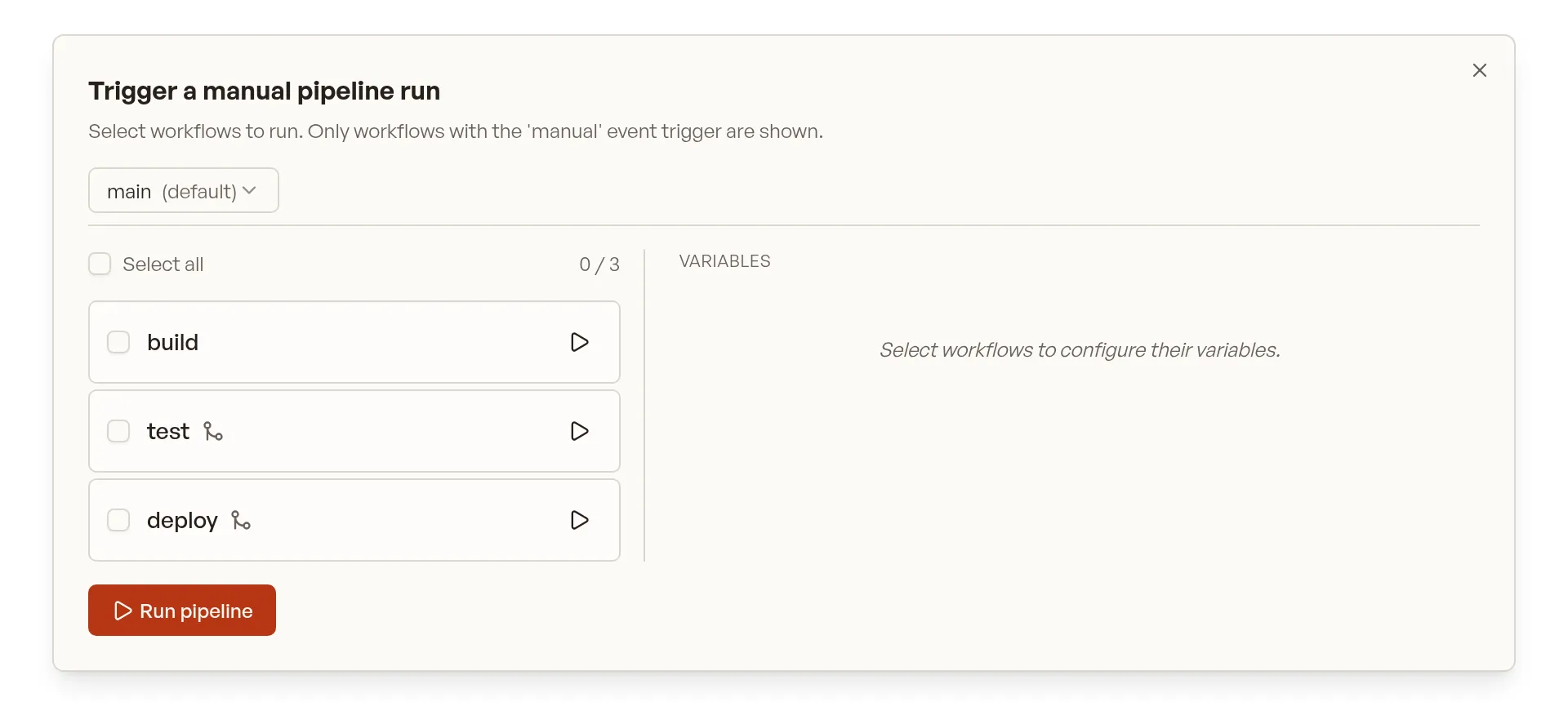

Manual pipeline trigger dialog listing the build, test and deploy workflows

Only workflows with the manual event are listed. From the left column you can:

• Select workflows: click anywhere on a row (or its checkbox) to include it, then click Run pipeline. The selected workflows are bundled into one new pipeline.
• Quick-start a single workflow: click the play button on a row to immediately start a pipeline containing just that workflow, using each variable’s default.
• Select all: use the Select all checkbox to include every listed workflow.

Workflows that depend on others show a branch icon next to their name; hover it to see the dependencies.

Setting variables in the UI

The right column shows the variables of the currently selected workflows, grouped so it is clear which variable belongs where. A variable declared by more than one selected workflow appears once in a Shared group at the top, annotated with a Used by note; each remaining workflow’s variables follow under its own heading. In the screenshot below both test and deploy declare LOG_LEVEL, so it is shown once under Shared, while deploy’s own variables sit under the deploy heading.

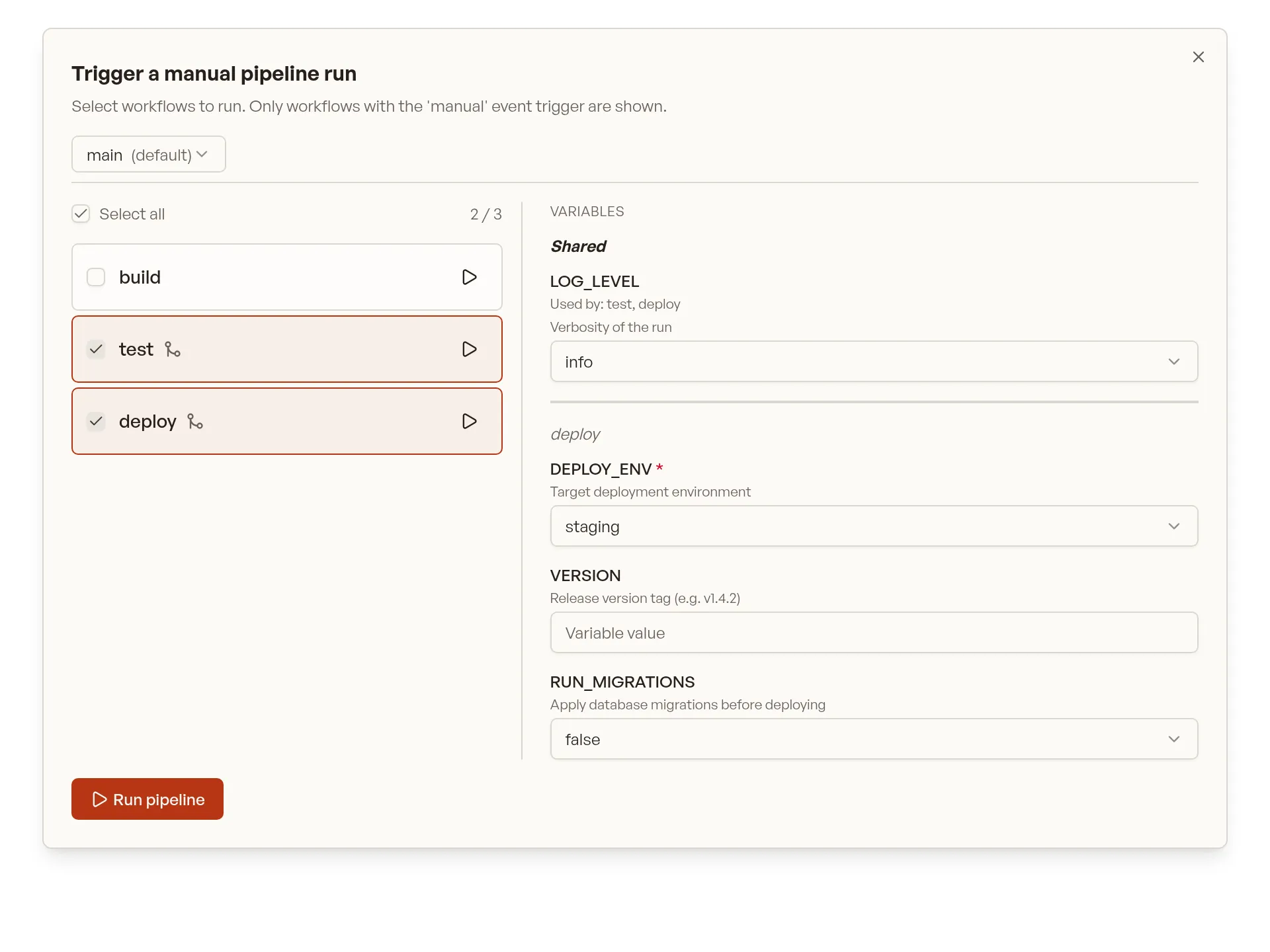

Manual pipeline variables panel showing a shared LOG_LEVEL dropdown and the deploy workflow's DEPLOY_ENV, VERSION and RUN_MIGRATIONS fields

Each field renders according to its declaration:

• variables with options render as a dropdown, everything else as a text input;
• every field is pre-filled with its declared default;
• required variables are marked with * and must be set before Run pipeline is enabled.

Free-form variable entry is not available: only declared or evaluate-referenced variables can be set. Submitting a value outside a variable’s declared options, or omitting a required variable, is rejected.

Dependency handling

When a selected workflow depends on other workflows (via depends_on), the system automatically includes those dependencies if they also have the manual event trigger.

For example, given these workflows:

# .crow/build.yaml
when:
  - event: manual

steps:
  - name: build
    image: golang
    commands:
      - go build

# .crow/deploy.yaml
when:
  - event: manual

depends_on:
  - build

steps:
  - name: deploy
    image: alpine
    commands:
      - ./deploy.sh

If you select only “deploy”, the “build” workflow will be automatically included because:

1. “deploy” depends on “build”
2. “build” has the manual event trigger

Caution

Dependencies that do not have the manual event trigger will not be automatically included. A warning will be shown in the UI when this occurs.

CLI triggering

Manual pipelines can also be triggered from the CLI, which is handy for scripts and scheduled jobs. The repository is a positional argument (its ID or full name) and --branch is required:

crow pipeline create --branch main owner/repo

Pass variables with --var NAME=value, repeating the flag for each variable:

crow pipeline create --branch main --var DEPLOY_ENV=production --var VERSION=v1.4.2 owner/repo

All workflows matching the branch are considered; use when.evaluate (see below) to control which ones actually run.

Using variables to control what runs

Because variables are available in when.evaluate, they can gate whole workflows or individual steps at runtime. A step or workflow whose evaluate resolves to false is skipped, so the same manual pipeline can behave differently depending on the values entered:

when:
  - event: manual

steps:
  - name: deploy
    image: alpine
    commands:
      - ./deploy.sh
    when:
      - evaluate: 'DEPLOY_ENV == "production"'

Here the deploy step only runs when DEPLOY_ENV is set to production, whether the pipeline was started from the UI or with --var DEPLOY_ENV=production on the CLI.

Caution

If every step is filtered out by its when conditions, no pipeline is created and the UI reports that all steps were filtered out.
