Pipelines

Pipeline List View

A pipeline consists of one or more workflows. A workflow consist of one or more steps.

Caution

Pipeline > Workflow > Step

A YAML file in .crow/ defines one or more workflow(s) (“more” if a “matrix” workflow is defined). The following file tree would consist of four workflows:

.crow/
├── build.yaml
├── deploy.yaml
├── lint.yaml
└── test.yaml

Each workflow can consist of an arbitrary number of steps. By default, workflows do not have a dependency to each other and are executed in parallel. Steps within a workflow are executed sequentially by their order of definition.

Both steps and workflows accept a depends_on: [] key which can be used to specify an explicit execution order.

Caution

Each workflow is isolated from other workflows with respect to its working directory and file access. Steps within a workflow have access to the same files as they share a common workflow-specific volume which is attached to all steps within the workflow.

Execution control

By default, all workflows start in parallel if they have matching event triggers. An execution order can be enforced by using depends_on:

steps:
  - name: deploy
    image: <image>:<tag>
    commands:
      - some command

# these are names of other workflows
depends_on:
  - lint
  - build
  - test

This keyword also works for dependency resolution with steps.

Note

Workflows which depend on others only start if the dependent ones finished successfully. A workflow can be forced to execute no matter the exit status of other workflows by setting

runs_on: [success, failure]

Event triggers

Event triggers are mandatory and define under which conditions a workflow is executed. At the very least one even trigger must be specified, for example to execute the pipeline on a push event:

when:
  event: push

Typically, you want to use a more fine-grained logic including more events, for example triggering a workflow for pull_request events and pushes to the default branch of the repository:

when:
  - event: pull_request
  - event: push
    branch: ${CI_REPO_DEFAULT_BRANCH}

There are more ways to define event triggers using both list and map notation. Please see FIXME for all available options.

Matrix workflows

Matrix workflows execute a separate workflow for each combination in the specified matrix. This simplifies testing and building against multiple configurations without copying the full pipeline definition but only declare the variable parts.

Example:

matrix:
  GO_VERSION:
    - 1.4
    - 1.3
  REDIS_VERSION:
    - 2.6
    - 2.8
    - 3.0

Each definition can also be a combination of variables. In this case, nest the definitions below the include keyword:

matrix:
  include:
    - GO_VERSION: 1.4
      REDIS_VERSION: 2.8
    - GO_VERSION: 1.5
      REDIS_VERSION: 2.8

Interpolation

Matrix variables are interpolated in the YAML using the ${VARIABLE} syntax, before the YAML is parsed. This is an example YAML file before interpolating matrix parameters:

matrix:
  GO_VERSION:
    - 1.4
    - 1.3
  DATABASE:
    - mysql:8
    - mysql:5
    - mariadb:10.1

steps:
  - name: build
    image: golang:${GO_VERSION}
    commands:
      - go get
      - go build
      - go test

services:
  - name: database
    image: ${DATABASE}

And after:

steps:
  - name: build
    image: golang:1.4
    commands:
      - go get
      - go build
      - go test
    environment:
      - GO_VERSION=1.4
      - DATABASE=mysql:8

services:
  - name: database
    image: mysql:8

Examples

Matrix pipeline with a variable image tag

matrix:
  IMAGE:
    - golang:1.7
    - golang:1.8
    - golang:latest

steps:
  - name: build
    image: ${IMAGE}
    commands:
      - go build
      - go test

Matrix pipeline using multiple platforms

matrix:
  platform:
    - linux/amd64
    - linux/arm64

steps:
  - name: test
    image: <image>
    commands:
      - echo "Running on ${platform}"

  - name: test-arm
    image: <image>
    commands:
      - echo "Running on ${platform}"
    when:
      platform: linux/arm*

Tip

For the kubernetes backend, architecture-specific pipelines should be controlled via the nodeSelector backend option.

Skipping commits

Commits can be prohibited from triggering a webhook by adding [SKIP CI] or [CI SKIP] (case-insensitive) to the commit message.

Container Naming Scheme

Crow supports configurable container naming schemes which determines the names of containers (and pods/services in Kubernetes) created during pipeline execution.

There are two supported schemes:

1. Descriptive (default)

   • Format: <owner>-<repo name>-<pipeline id>-<workflow id>-<step name>
   • Example: myowner-myrepo-42-3-build
   • Matrix workflows: Each workflow instance gets a unique workflow number for proper identification
   • Single workflows: Workflow number is still included for consistency

2. Hash-based (legacy)

   • Format: crow_<hash>
   • Example: crow_123e4567-e89b-12d3-a456-426614174000
   • This was previously the default (until 3.x) (as wp_<hash>), now updated to crow_ for clarity.

Note

Names are sanitized and truncated to 64 characters for Kubernetes compatibility.

The naming scheme can be set via the server environment variable CROW_CONTAINER_NAME_SCHEME.

Manual Pipeline Triggering

Pipelines can be triggered manually from the UI or CLI. To enable manual triggering for a workflow, add the manual event to the when block:

when:
  - event: manual

Or combined with other events:

when:
  - event: [push, manual]
    branch: main

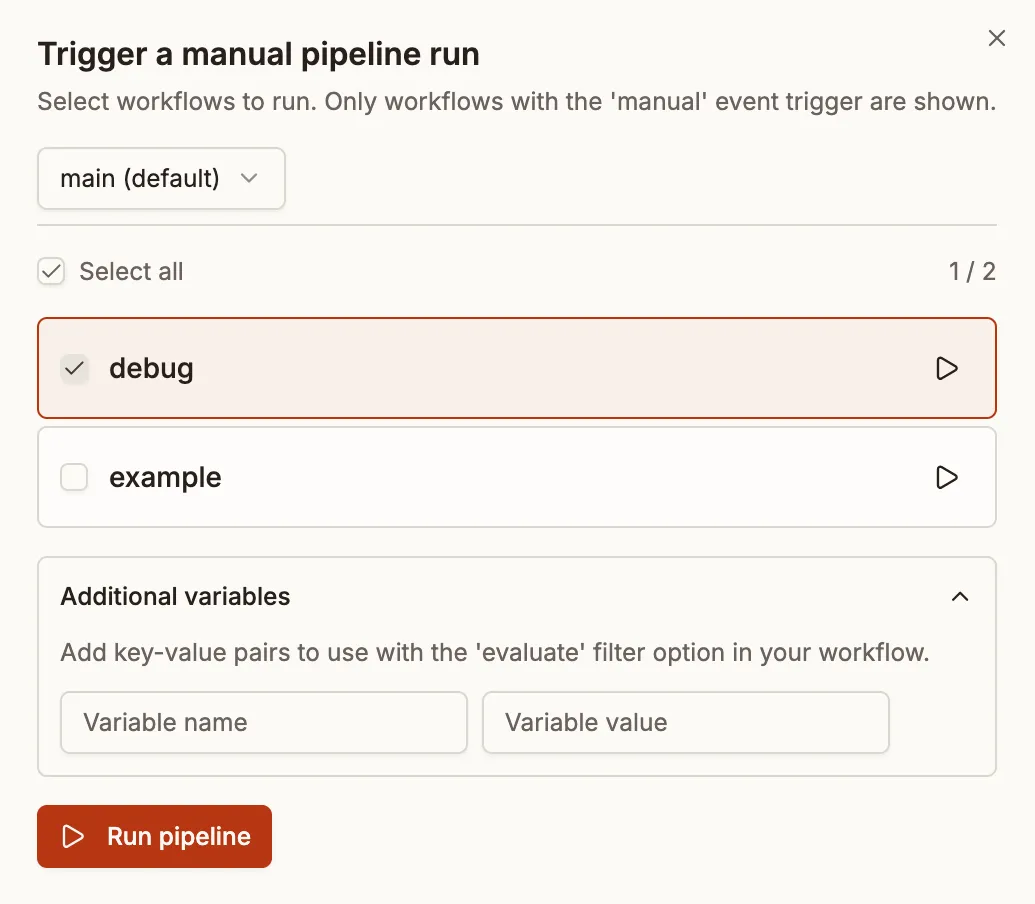

UI Workflow Selection

When triggering a manual pipeline from the UI, you’ll see a list of all workflows that have the manual event configured. You can:

• Select multiple workflows: Check the workflows you want to run and click “Trigger”
• Quick-start a single workflow: Click the play button next to any workflow to immediately start just that workflow
• Select all: Use the “Select all” checkbox to select all available workflows

Manual pipeline Selection

Dependency Handling

When a selected workflow depends on other workflows (via depends_on), the system automatically includes those dependencies if they also have the manual event trigger.

For example, given these workflows:

.crow/build.yaml

when:
  - event: manual

steps:
  - name: build
    image: golang
    commands:
      - go build

.crow/deploy.yaml

when:
  - event: manual

depends_on:
  - build

steps:
  - name: deploy
    image: alpine
    commands:
      - ./deploy.sh

If you select only “deploy”, the “build” workflow will be automatically included because:

1. “deploy” depends on “build”
2. “build” has the manual event trigger

Caution

Dependencies that do not have the manual event trigger will not be automatically included. A warning will be shown in the UI when this occurs.

CLI Triggering

Manual pipelines can also be triggered via the CLI:

crow pipeline create --branch main --repo owner/repo

To run specific workflows, use the --workflow flag:

crow pipeline create --branch main --repo owner/repo --workflow build --workflow test

Filtering with Evaluate

The evaluate condition can be used to further filter manual workflows. This is useful when you want to pass variables to control which steps run:

when:
  - event: manual
    evaluate: 'DEPLOY_ENV == "production"'

When triggering manually via the CLI, you can pass variables:

crow pipeline create --branch main --repo owner/repo --var DEPLOY_ENV=production
